CF-101 Voodoo — Full Airframe Laser Scan

CF-101 Voodoo airframe during on-site laser scanning
This is the real scan. Load it and drag.
Interactive · loads the full-resolution scan mesh
Client
Heritage / museum
Year
2020
Scope
Full exterior airframe
Deliverable
Watertight mesh + CAD

Problem

A retired CF-101 airframe with no surviving manufacturing geometry — needed accurate as-built digital records before restoration and display.

Method

Multi-setup laser scanning of the complete exterior, registered into a single aligned point cloud, then meshed and cleaned into a watertight model.

Result

A permanent, dimensionally accurate digital record — the interactive model on this page is served from the scan itself, viewable by anyone in a browser.

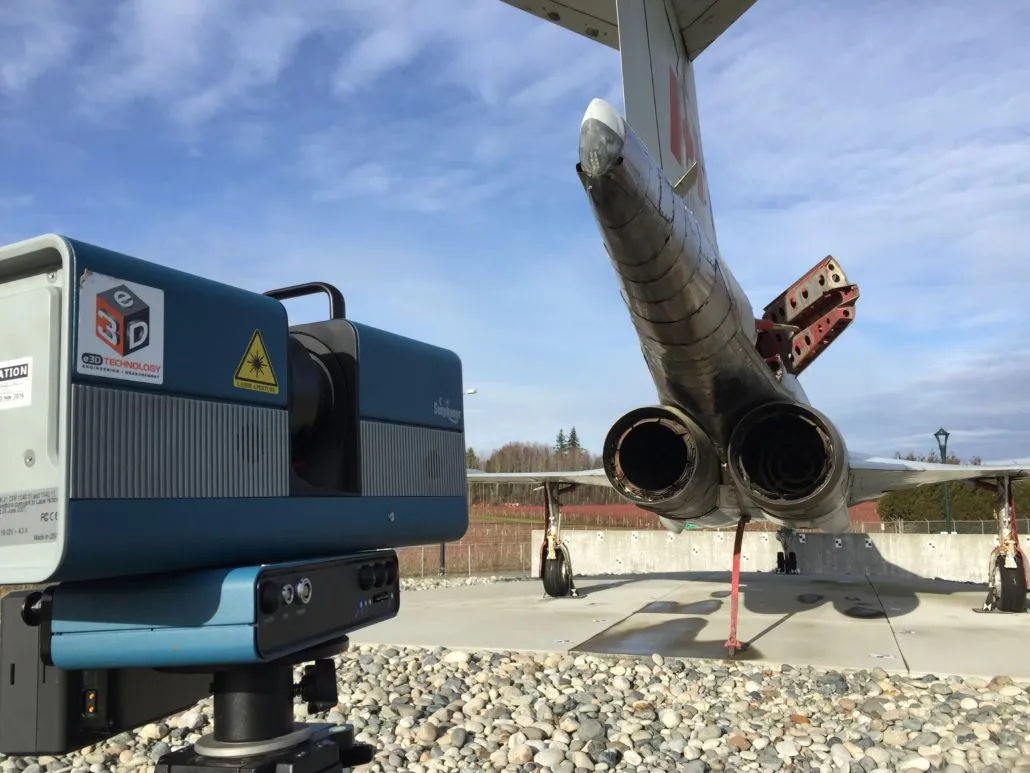

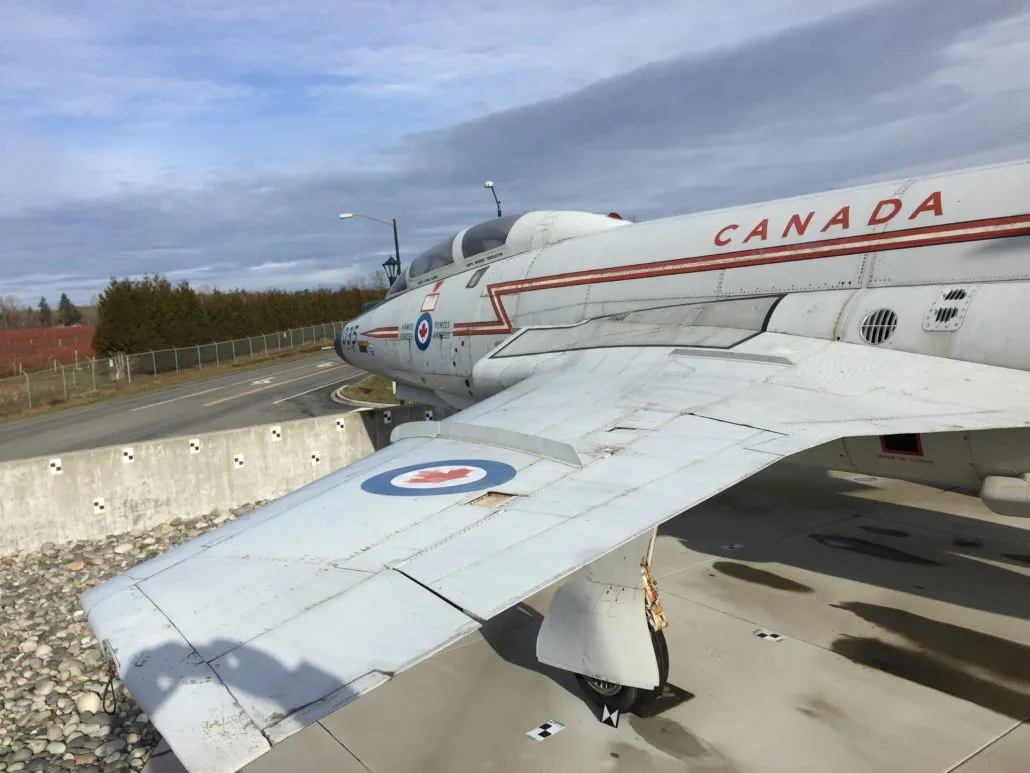

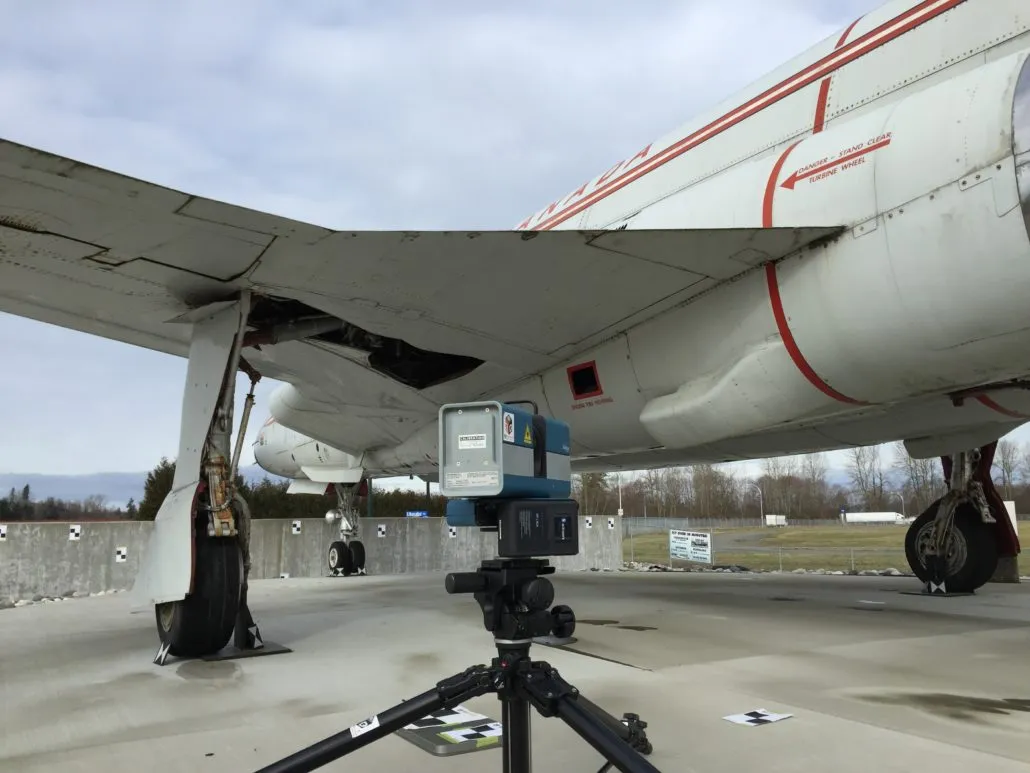

Scanning setup beside the CF-101 fuselageCF-101 airframe exterior detail during captureRegistered point cloud coverage check on site
