Hawker Typhoon Supercharger — Scan & Geometry Recovery

Napier Sabre supercharger assembly prepared for laser scanning
This is the real scan. Load it and drag.
Interactive · loads the full-resolution scan mesh
Client
Hawker Typhoon JP843 Legacy Project
Year
2021
Scope
Napier Sabre supercharger assembly
Deliverable
Watertight mesh + reference geometry

Problem

The JP843 restoration required faithful geometry of a Napier Sabre supercharger — an assembly with no accessible drawings and few surviving examples.

Method

High-resolution handheld laser scanning of the complete assembly, registered and meshed into a watertight model preserving casting detail.

Result

Reference geometry the restoration team can measure, section and reproduce against — and a permanent digital record of a nearly extinct piece of engineering.

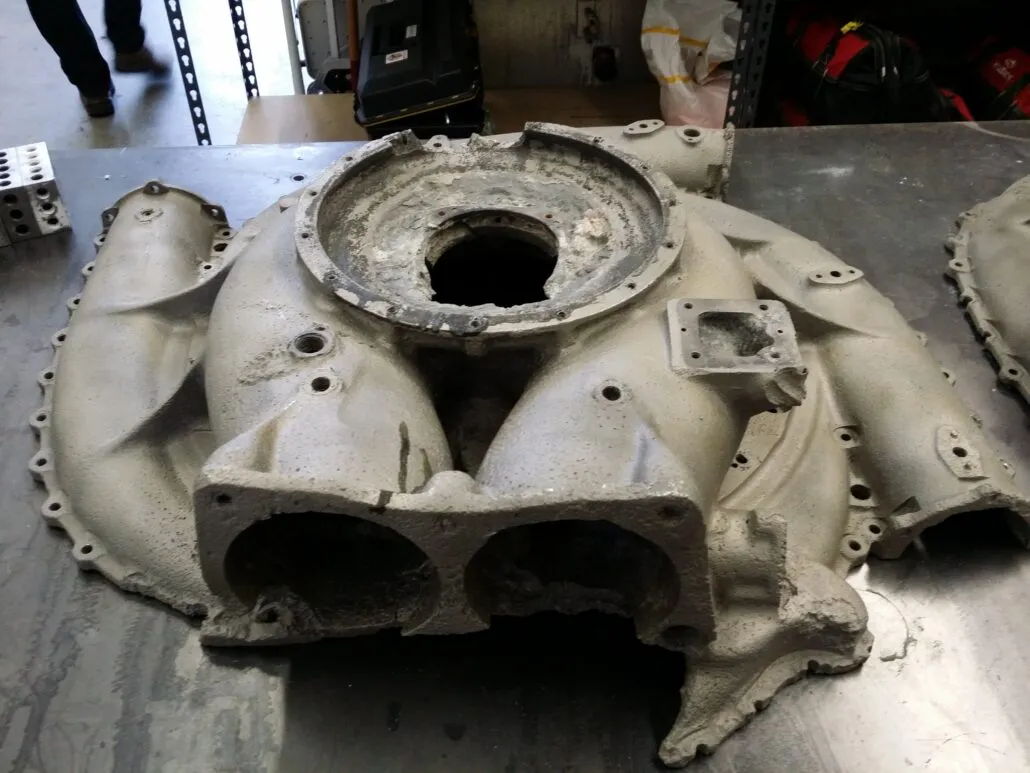

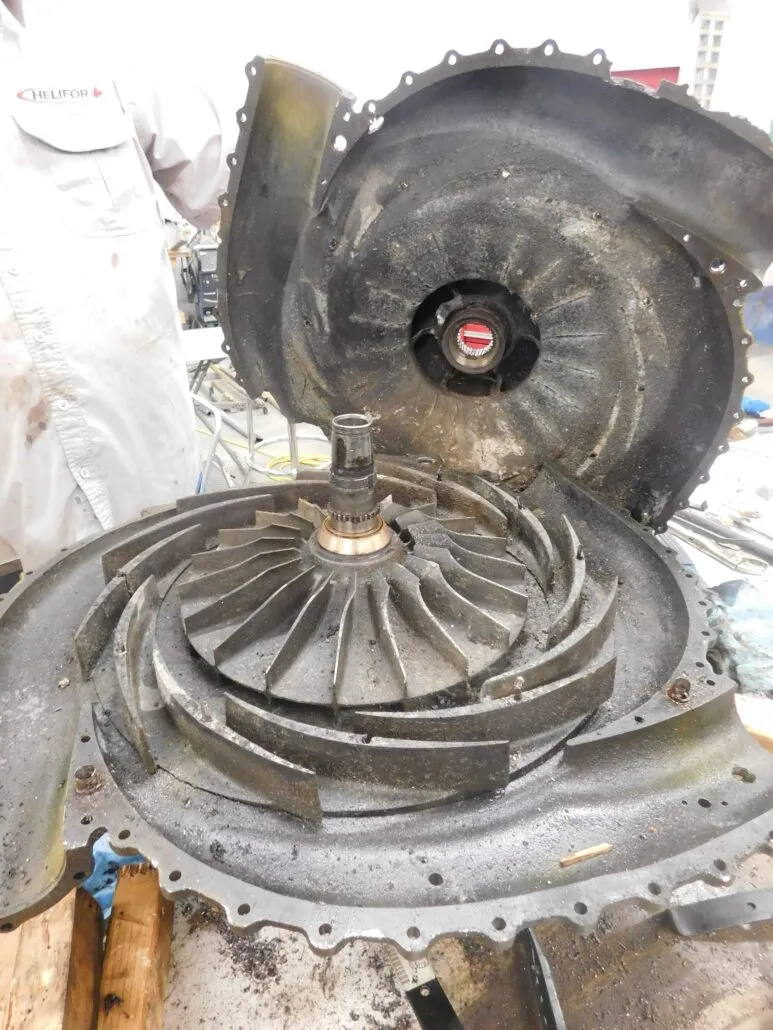

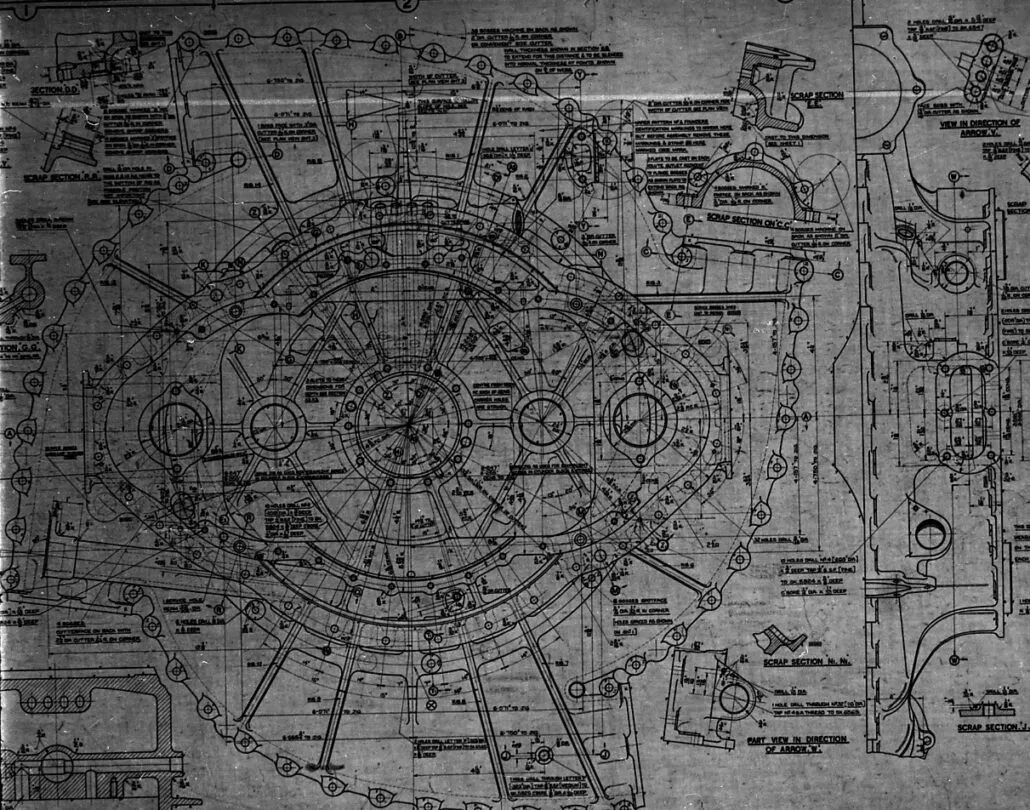

Supercharger casting detail during scanningScan coverage of the supercharger impeller housingCompleted watertight mesh of the supercharger
